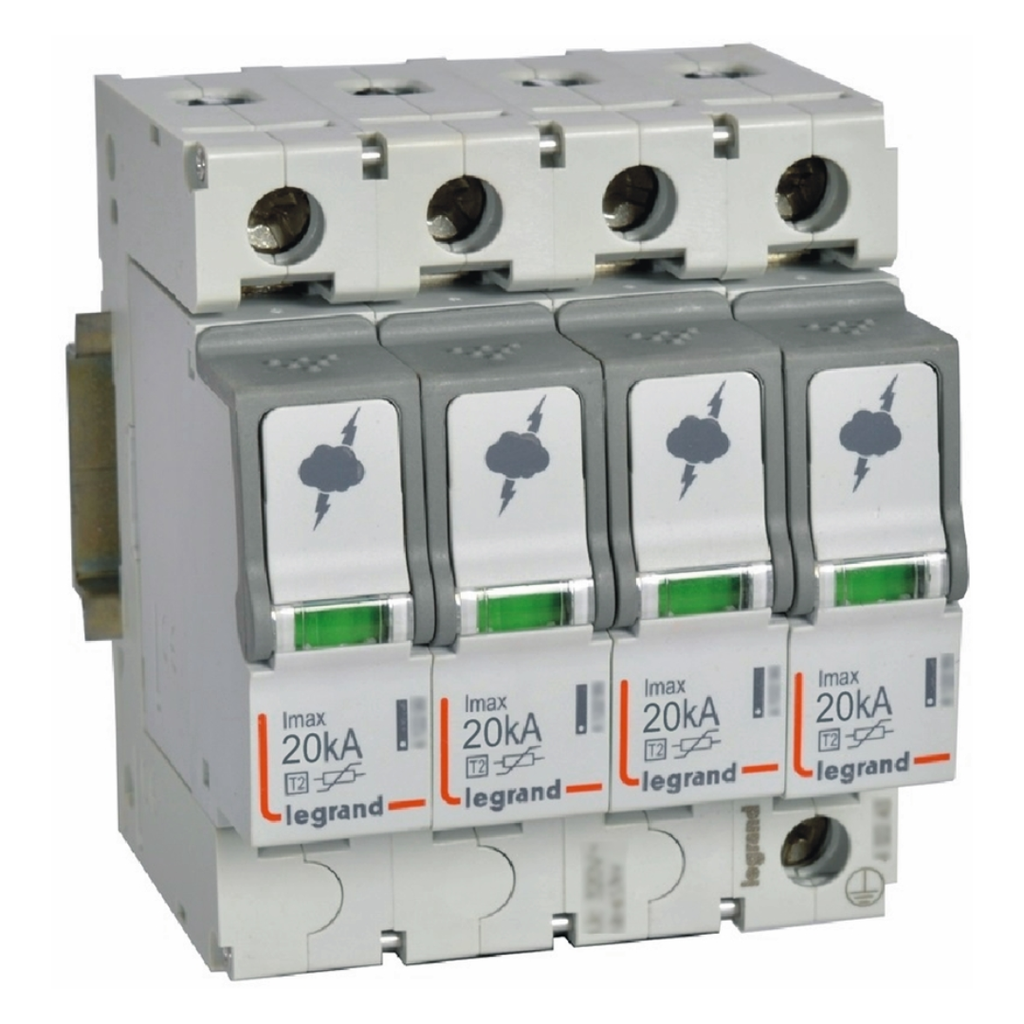

LEGRAND Surge Protector 4p 20ka class 2 T2

Ref - 412223 System configuration IT - No System configuration TN - Yes System configuration TN-C - Yes System configuration TN-C-S - Yes System configuration TN-S - Yes System configuration TT - No System configuration other - No Number of conductors (without earthing) - 4 Nominal discharge surge current In (8/20) - 5 kA Nominal voltage AC - 230 V Max. continuous voltage AC - 320 V Voltage protection level - 1.2 kV Integrated backup fuse - No Mounting method - DIN rail (top hat rail) 35 mm Construction size - 4 modular spacing Max. conductor cross section solid (solid, stranded) - 35 mm² Max. conductor cross section flexible (fine-strand) - 25 mm²s With remote signalling contact - No Signalling at the device - Optical Category type 2 - Yes Degree of protection (IP) - IP20
