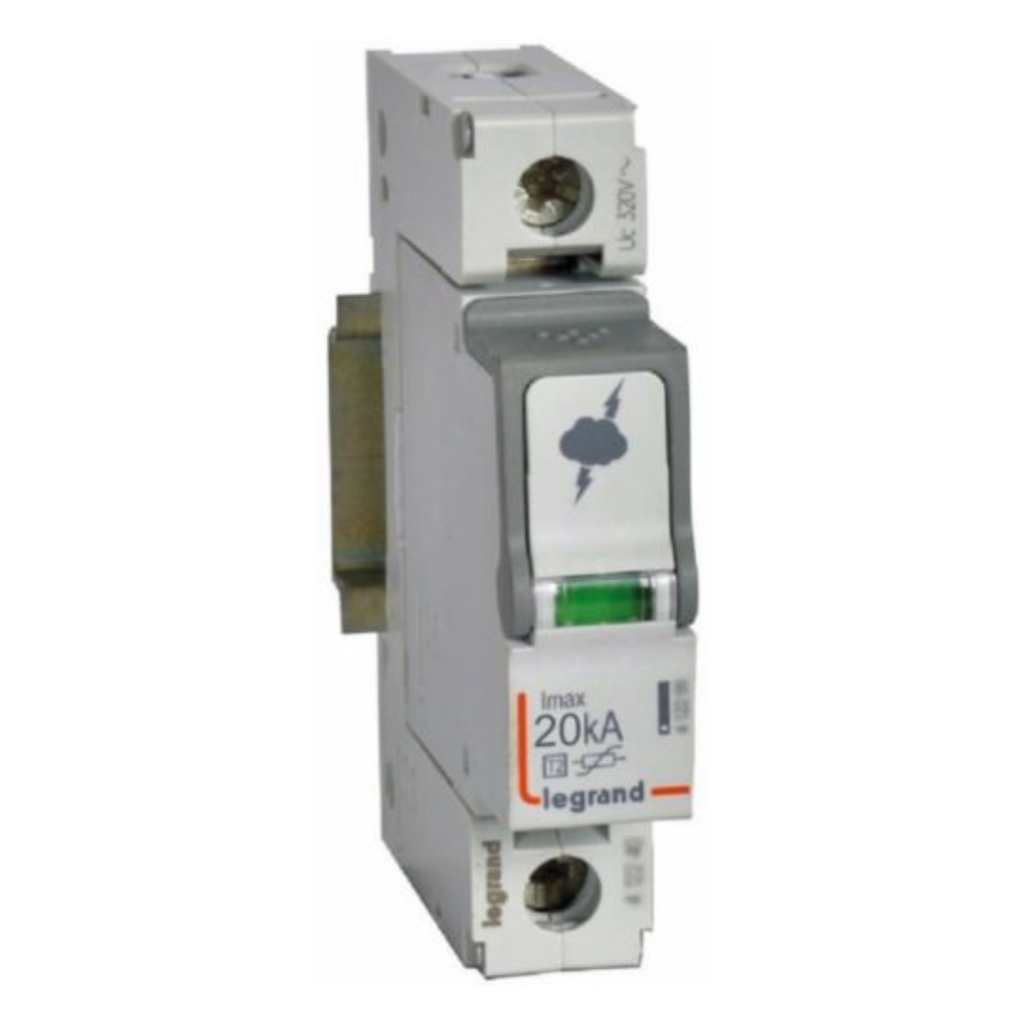

LEGRAND Surge Protector 1p 20ka T2 1mod

Ref - 412220 System configuration IT - No System configuration TN - Yes System configuration TN-C - Yes System configuration TN-C-S - Yes System configuration TN-S - No System configuration TT - No System configuration other - Yes Number of conductors (without earthing) - 1 Max. discharge surge current (8/20) - 5 kA Nominal voltage AC - 230 V Max. continuous voltage AC - 320 V Voltage protection level N-PE - 1.2 kV Integrated backup fuse - No Mounting method - DIN rail (top hat rail) 35 mm Construction size - 1 modular spacing Max. conductor cross section solid (solid, stranded) - 35 mm² Max. conductor cross section flexible (fine-strand) - 25 mm²s With remote signalling contact - No Signalling at the device - Optical Category type 2 - Yes Degree of protection (IP) - IP20
