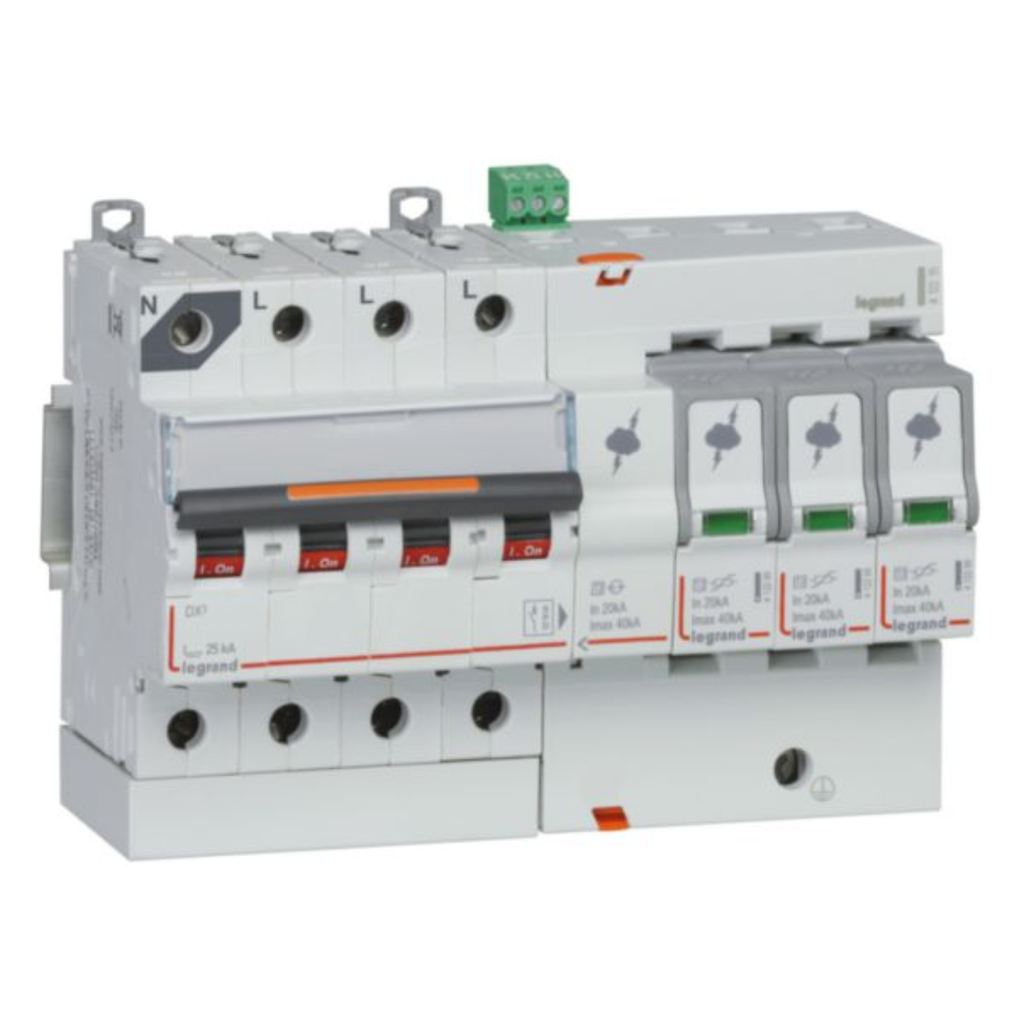

LEGRAND Surge Protector 3p+n 40ka T2 320v 8mod

Ref - 412215 System configuration DC - No System configuration IT - No System configuration TN - Yes System configuration TN-C - Yes System configuration TN-C-S - Yes System configuration TN-S - Yes System configuration TT - Yes System configuration other - No Number of conductors (without earthing) - 4 Nominal discharge surge current In (8/20) - 20 kA Max. discharge surge current (8/20) - 20 kA Nominal voltage AC - 400 V Max. continuous voltage AC - 320 V Voltage protection level - 2.5 kV Voltage protection level L-N - 2.5 kV Voltage protection level N-PE - 1.5 kV Integrated backup fuse - Yes Mounting method - DIN rail (top hat rail) 35 mm Construction size - 8 modular spacing Max. conductor cross section solid (solid, stranded) - 35 mm² Max. conductor cross section flexible (fine-strand) - 25 mm²s With remote signalling contact - Yes Signalling at the device - Optical Category type 2 - Yes Degree of protection (IP) - IP20 Width - 142.4mm Height - 96.5 mm Depth - 77.5 mm Degree of impact strength (IK) - IK04 Operating / setting temperature - -25-70 °C Storage temperature - -40-70 °C Nominal voltage - 230-415 V Frequency - 50-60 Hz Electric supplying direction - By the top Terminal marking indication - Yes Colour - Grey RAL-number - 7035 Halogen free - Yes Connection type - Screwed terminal, Cable Terminals capacity - 6-35 mm² Label space/information surface - Yes
