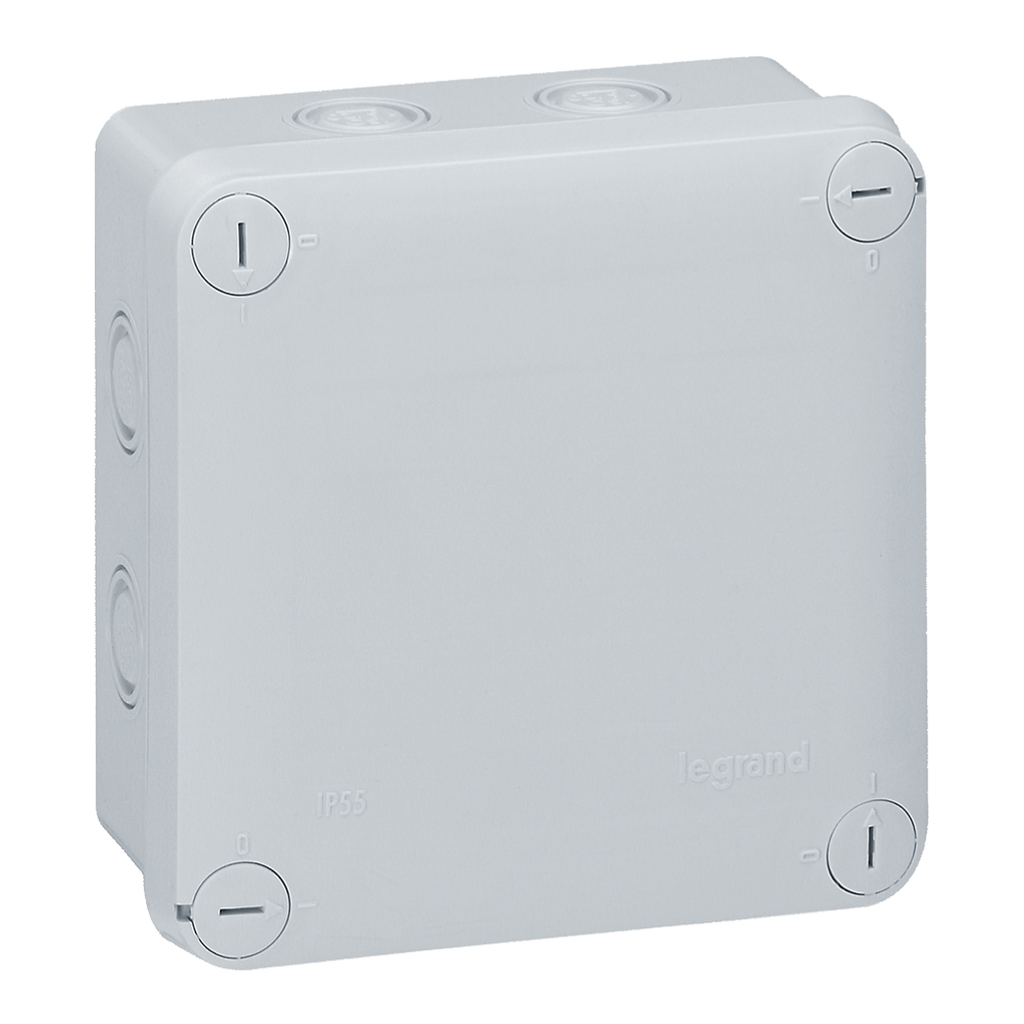

LEGRAND Plexo Box Square Junction With 7 Entries For Plexo Cable Gland Dimensions 105X105X55Mm Grey Ral7035

REF: 092024 Product Features Square junction box for Plexo cable gland - Grey RAL7035 IP55 - IK07 - 650°C - 7 knockouts for ISO16 cable gland and ISO20 cable gland - 105mm x 105mm x 55mm Lid closing with a 1/4 turn Resistance to incandescent wire 650°C (NF EN 60695-2-11) - Operating temperature - 25°C to + 40°C Captive cover by link - Marking areas on both sides of the cover - Class II is ensured by the protective caps (supplied) of the fixing screws The + installation Fixing with plumb adjustment - Fixing possible with Pulsa 700 E type tool - Fixing ensured by 2 interior points (screws of Ø5mm maximum) or by 3 points outside the wiring volume (screws of Ø4mm maximum) The advantages of use Use as junction boxes in all types of normal installation circuits (ERP according to article EL10, housing and industry) Range Information Plexo waterproof junction boxes allow all connections in residential or tertiary buildings, indoors or outdoors thanks to an IP 55 and an IK 07. They can be used in public buildings with 3 levels of resistance to incandescent wires meeting the installation standards in these premises (960°, 750° and 650°). They are available in round, square or rectangular versions, with interchangeable direct entry end caps or with pre-knockout entries. The covers are clip-on or closed with ¼ turn screws. The junction boxes are resistant to temperatures ranging from -25 °C to + 45 °C, to bad weather, but also to UV rays, salt spray, oils and greases. A compact box is available for spaces with reduced space requirements.
