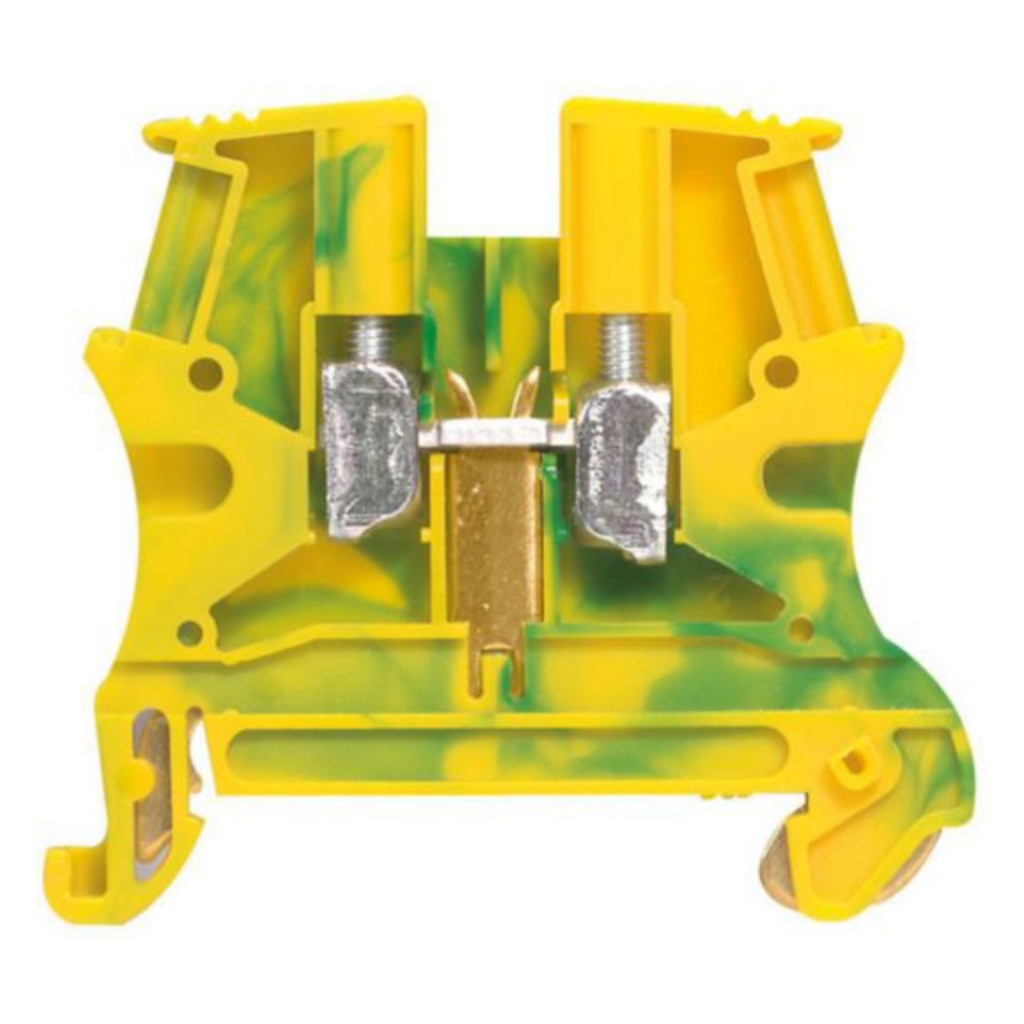

LEGRAND Viking 3 screw terminal block for protective conductor with 1 junction 1 input 1 output section 6mm² - pitch 8mm

REF: 037172 Product Features 1 junction block for Viking3 protective conductor screw connection - 1 input / 1 output with brass metal foot which allows the fixing rail to be used as a protective conductor Nominal section: 6mm² - Pitch: 8mm - 2 zones for automatically inserted equipotential bonding combs Color: Green/Yellow Capacity: - rigid conductor: 0.5mm² to 10mm² - flexible conductor with or without end cap: 0.25mm² to 6mm² Fixing on symmetrical rails depth 15mm, symmetrical EN 60715 depth 7.5mm and depth 15mm with screws The + installation A securing pin on the insulating body holds the Viking 3 blocks together, making them easier to handle and contributing to perfect alignment on the rail. However, it is still possible to assemble and disassemble a block without removing the adjacent blocks. The advantages of use The ergonomic shape of the conductor entry makes it easy to insert the conductors - The use of Starfix cable end caps ensures equipotential bonding of all strands of a flexible conductor Range Information Viking 3 terminal blocks provide electrical connection between 2 flexible or rigid copper conductors. They are available in screw or spring connection versions, a system allowing screwless connection. The blocks are equipped with 2 zones for automatically inserted equipotential bonding combs. A securing pin on the insulating body holds the Viking 3 blocks together, making them easier to handle and contributing to perfect alignment on the rail. However, it is still possible to install/disassemble a block without removing the adjacent blocks. The colors of the terminal blocks are linked to the type of circuit: gray for standard circuit, blue for neutral conductor, orange for circuit not cut by the general disconnecting device, red for specific circuits and green for protective circuits in Class II equivalent assembly. Installation is possible on 3 types of symmetrical rail.
